Geothermal commercial water to water heat pump

FOB Reference Price:Get Latest Price
$2,700.00 - $4,500.00 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Water Source Heat Pump
Installation:
Freestanding
Storage / Tankless:
Instant / Tankless
Housing Material:
metal casing/stainless steel
Use:
School,hotel
Certification:
CE
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MACON or OEM
Model Number:
MWHRW120Z/S
Function:
Heating,hot water
Refrigerant:
R410A
Heat exchanger:
High efficiency tube in shell heat exchanger
Compressor:
Scroll compressor
Power:
380V/3PH/50Hz
COP:
4.1
Cooling capacity:
31.2KW
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Plywood case+plastic film
Port
Shunde or Guangzhou
Video Description
Product Description

Water to water geothermal heat pump

Water source heat pump (GSHP) is a central heating and/or cooling system that transfers heat to or from the ground.It uses the earth as a heat source (in the winter) or a heat sink (in the summer). This design takes advantage of the moderate temperatures in the ground to boost efficiency and reduce the operational costs of heating and cooling systems, and may be combined with solar heating to form a geosolar system with even greater efficiency.


Main features

1. High performance hermetic scroll compressor, Panasionic comprssor;
2. Shell and tube type condenser and evaporator, high heat exchange efficiency;
3. Modular design, compact size, factory assembled, save installation space;
4. Intelliigent controller, failure checking, balance operation, timer on/off,etc
5. Famous brand thermal expansion valve , ensure better performance.
6. Complete safety devices: high/low pressure switch, overcurrent protection, overload protection,overheat protection, reverse&lack phase protection, short flow protection,etc;
7. Refrigerant : R410A or R407C
8. Capacity range:5kW~124kW

Characteries

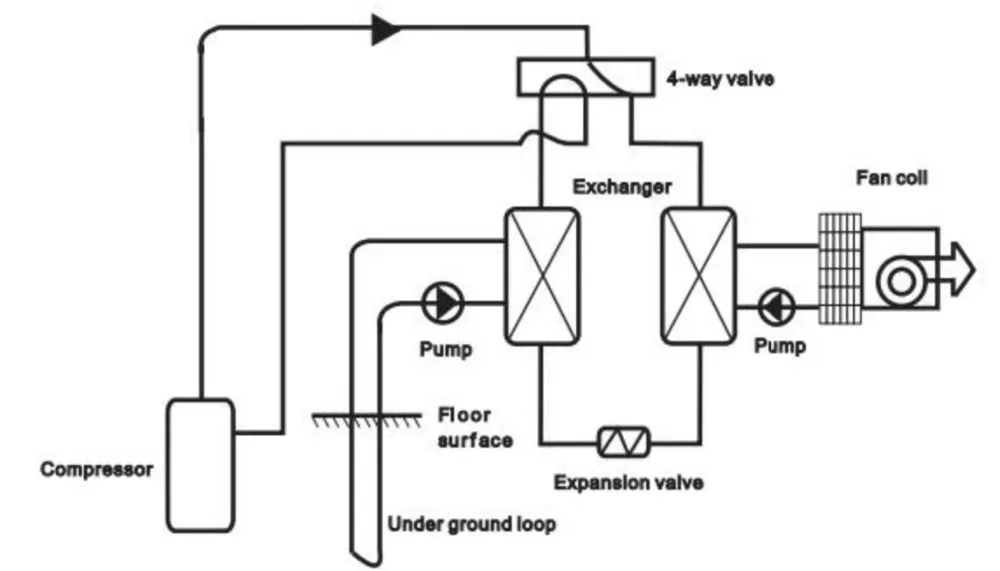

Working principle

Geothermal heat pump extract the thermal energy stored in the ground water for heating the building.Ground water temperature remain constant all year round,ensure water to water heat pumps operate in an exremely efficient and thus environmentally friendly way.Special attention must be paid to the water quality and available volume,as ground water is an efficient but sensitive source of heat.

Parameter
Specification of geothermal  heat pump
Model
MWHRW
100Z/S
120Z/S
200Z/S
Rated output water
L/h
625
750
1245
Cooling :Air condition side inlet/outlet :12℃/7℃,Hot source side inlet/outlet:30℃/35℃
Cooling capacity
KW
26
31.2
52
Rated Input Power (Cooling)
KW
6.12
7.34
12.24
 Rated Input Current (Cooling)
A
9.3
11.2
18.6
Heating:Air condition side inlet/outlet:40℃/45℃,Hot source side inlet/outlet:10℃/-
Heating capacity
KW
30
36
60
Rated Input Power (Heating)
KW
7.81
8.89
14.81
 Rated Input Current (Heating)
A
11.3
13.5
22.5
Power supply
380V/3PH/50Hz
Compressor
Scroll
Refrigerant
R410A
Dimension
mm
830/720/865
830/720/865
1260/780/900
Product detail

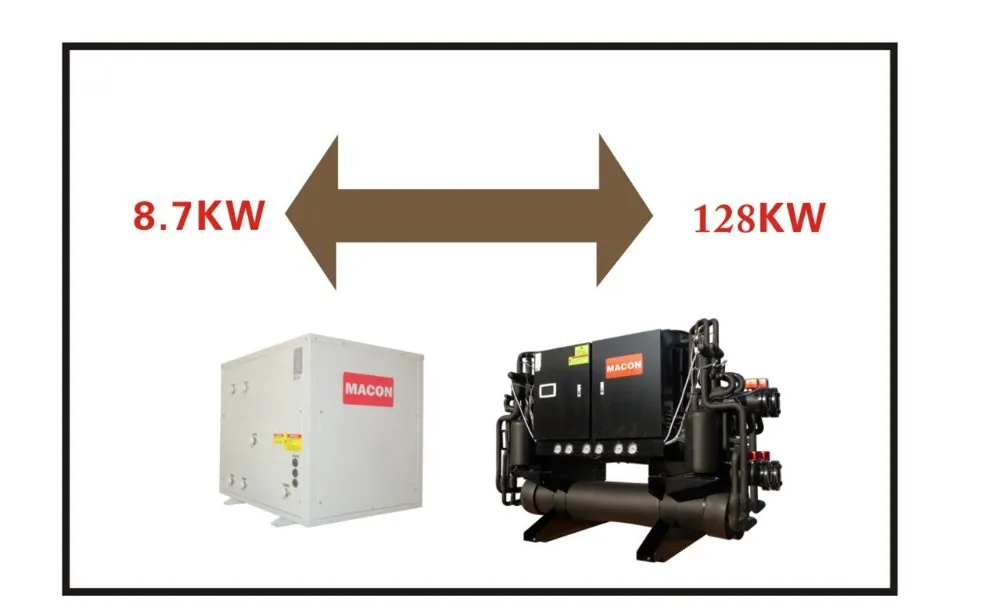

Wide heating capacity range

The heating capacity range of water source heat pump from 8.7KW to 128KW,suitable for different market demand,no matter for household or commercial use.

Quite running

Using efficient, low-noise rotary, closed scroll compressors and low-noise fan, ensure quiet running. The whole heat pump system is on a floating plate isolated from the heat pump cabinet to reduce vibration and noise at the most extent. The inside is with noise absorption layers.

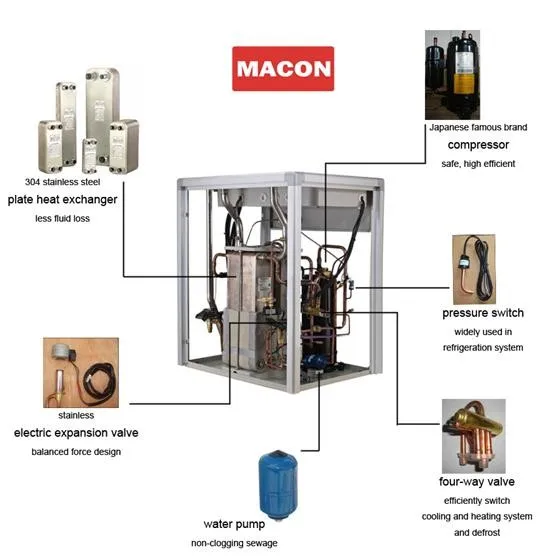

Components of ground source heat pump

Using energy efficient scroll compressors and 2 plate heat exchanger to improve energy efficiency

Multi protection

Water to wter heat pump has vary protection,such as water flow protection,compressor protection,high/low pressure protection,overload protection and so on.

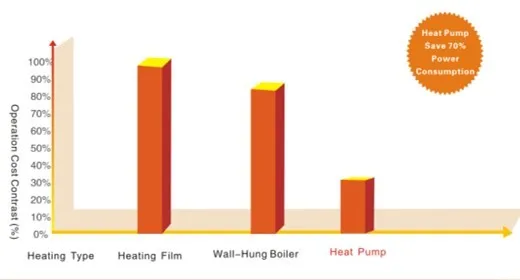

High efficient&Energy-Saving

International advanced heat pump technology to realize low opearation cost.Electricity comsuption is only 75% of solar water heater and 25% of electric water heater.

Anti freezing protection

Unit design with multi-grade anti freezing protection control function.When outdoor temperature is lower than setting temperature,unit operate anti freezing function.

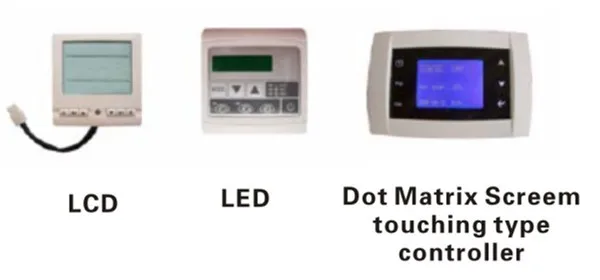

Advanced control and easy operation

Using a touch screen, dot matrix LCD display control, rolling language menu, easy to operate. Parametric design, display and monitor the unit operational status

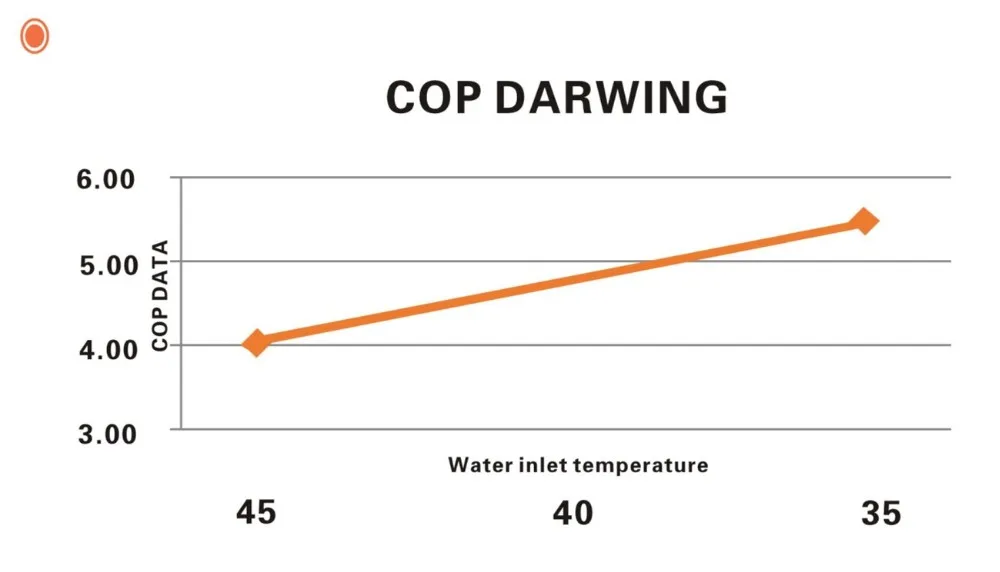

High COP


Timing in section fuction

User can set of different water temperature in different time periods according to their daily time and requirement.It is more energy saving.

Intelligent curve control mode

Intelligent wroking mode with winter heating curve,accoring to the change of outdoor ambient temperature,the unit will calculate water supply temperature automatically.

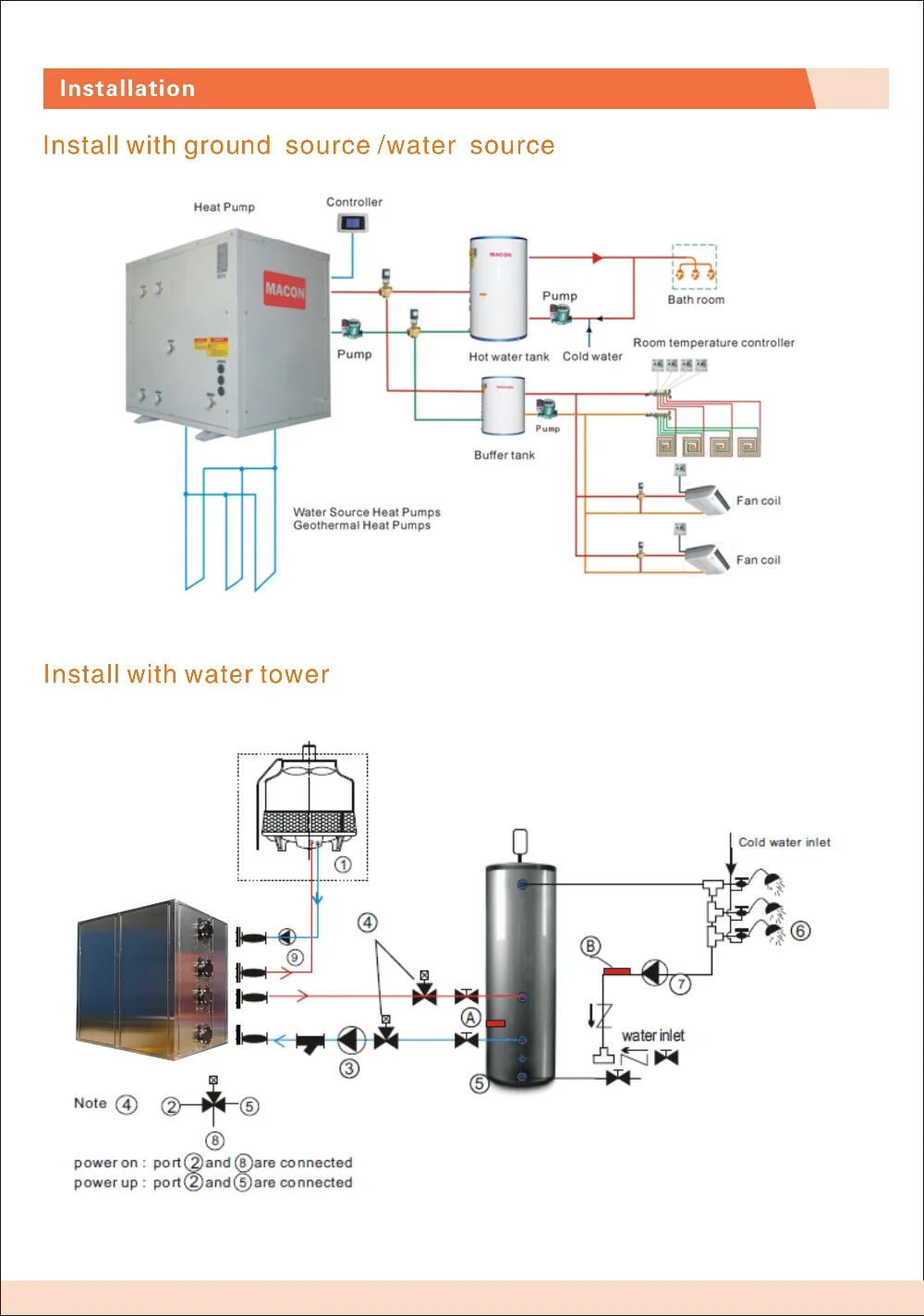

Installation
Our company

About Macon

Foshan Macon Cooling & Heating Energy-Saving Equipment Co.ltd is an international enterprise that commits itself to heat pump technology, fixes energy saving and environmental protection as its development orientation. Macon focus on research & development, production, sale and service of heat pumps.



Our customer

Our product sell to more than 76 countries.And some customers will come to visit us every year.

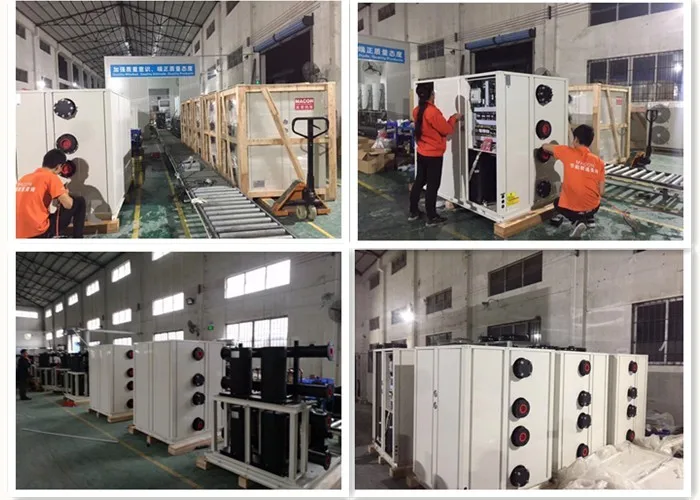

Production
