Underfloor heating hot water evi 10KW heater

FOB Reference Price:Get Latest Price
$1,000.00 - $2,500.00 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Air Source Heat Pump
Installation:
Freestanding
Storage / Tankless:
Instant / Tankless
Housing Material:
metal spraying
Use:
Household,school,centre
Certification:
CE
Place of Origin:
Guangdong, China
Brand Name:
MACON or OEM
Model Number:
MAHRW030ZA
Heating capacity:
10KW
Function:
house heating,hot water
Power supply:
220V/1PH/50Hz
Compressor:
EVI compressor
Refrigerant:
R410A
Supply Ability
Supply Ability:
2000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Carton case for container
Port
Shunde
Product Description

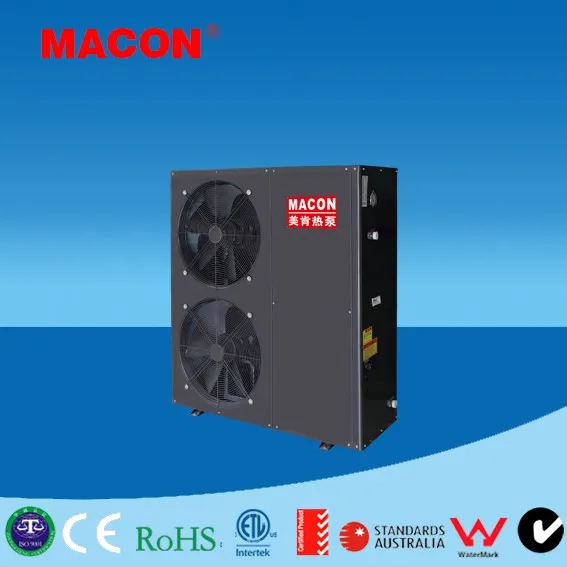

Floor heating EVI heat pump

Macon EVI heat pump can be house heating,cooling,domestic hot water in low temperature,even in -25 degree.Using high quality components for heat pump,it can reach high COP.It is best choice to replace boiler,gas boiler,electric heater. The intelligent control system means everyone in the family can control the unit. Due to the monobloc design, the units are cost effective, space saving and quiet to run outside. All of these features work together to give you a more comfortable home.

Parameter
Specification of air to water evi heat pump
Model
MACHRW
030ZA(E01)
040ZA(E01)
050(E01)
Heating:Outdoor air temp:7°C/6°C,outlet water temp 45°C,input water temp 40°C
Heating capacity
KW
8.4
15
18
COP
W/W
3.26
3.26
3.26
Rated input power
KW
2.48
4.6
5.52
Rated input current
A
11.7
7
8.4
Heating:Outdoor air temp:7°C/6°C,outlet water temp 35°C,input water temp 30°C
Heating capacity
KW
9
16
19.2
COP
W/W

4.12
4.12
4.12
Rated input power
KW
2.18
3.88
4.66
Rated input current
A
9.9
5.9
7.12
Power supply
V/PH/Hz
220/1/50
Noise
dB(A)
52
54
55
Compressor

Scroll
Scroll
Scroll
Water flow volume
m3/h
1.8
3.0
3.6
Refrigerant type

R410A
Net dimesion(L/M/H)
mm
1115/470/945
1115/470/1250
1115/470/1250
Net weight
Kg
98
158
168
Detailed Image

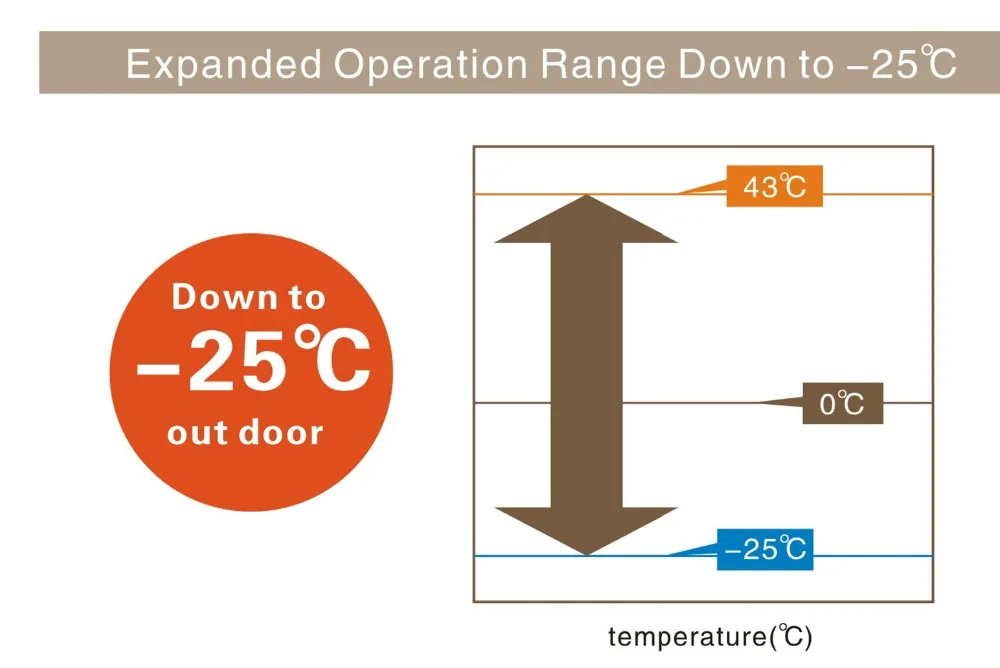

Safe operation in all condition

Wide working ambient temperature range:-25 degree~43 degree.Intelligent curve control,any whether available,meet the needs of summer cooling,winter heating and hot water all the year.

Multi function design

Multi function design,flexable application,user can install the products according to their needs.Cooling,heating,domestic hot water is optional for different places.

Smart defrost

The heat pump ultilize smart defrosting technology,reduce the defrosting time and extend heating time,fast recover water supply temperature,improve heat pump heating efficiency and keep comfortable temperature.

Auto anti freezing protection technology

Unit design with multi grade anti freeze protection control function.When outdoor temperature is lower than setting function,unit operate anti freezing protection automatically and keep the unit safe.

Intelligent curve control

Intelligent working mode with winter heating curve,according to the change of outdoor temperature.the unit will calculate  water supply temperature automatically.Make more convenience and energy saving.

Timing in section function

User can set of different water supply in different time periods according to their daily life and requirement.It is an energy saving function for user.

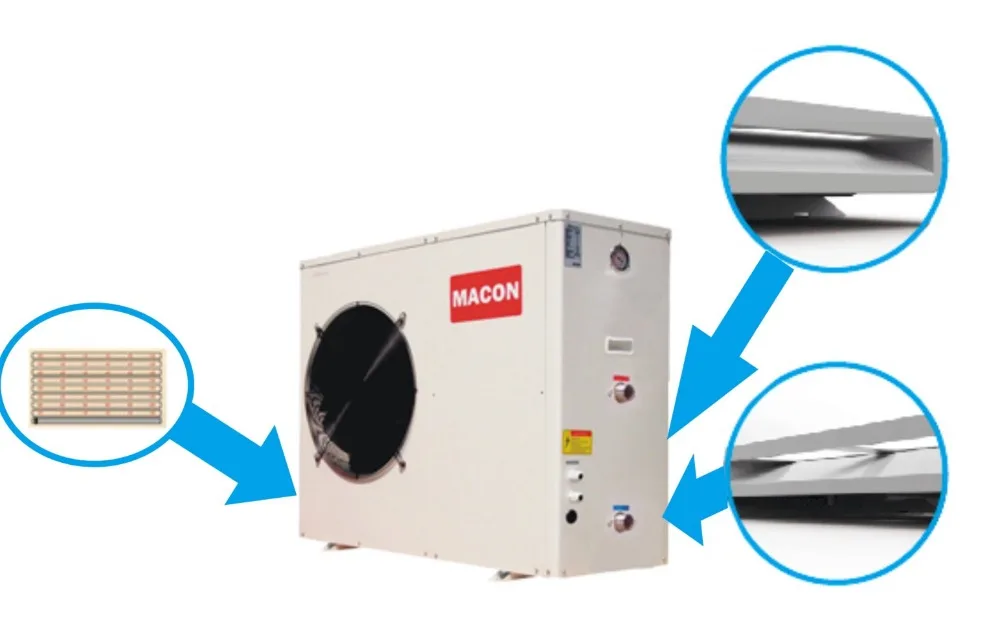

No forsting in the bottom and easy to drain

Featured with block up slopes on two side,the chassis is easier to drain condensate water.With the use of special liquid distributor technology.In heating mode,the temperature of refrigerant in tha air exchangers' bottom copper tube will not decrease in order to ensure no frosting on it and smooth drainage.

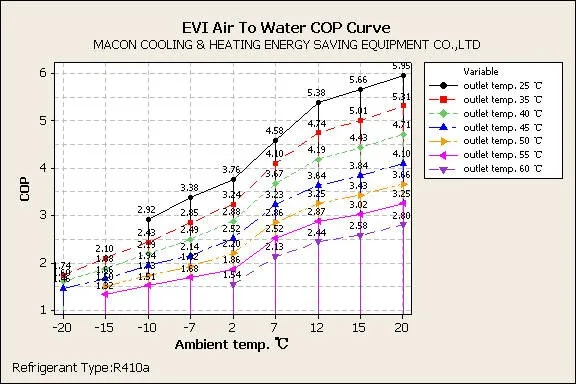

High COP

Macon EVI heat pump with high COP in low temperature even under -25 degree.

Tube in shell heat exchanger

Our company

About Macon

Foshan Macon Cooling & Heating Energy-Saving Equipment Co.ltd is an international enterprise that commits itself to heat pump technology, fixes energy saving and environmental protection as its development orientation. Macon focus on research & development, production, sale and service of heat pumps.

Certificate

Our products are highly qualified by international standards. We gain various certifications such as CE, RoHS, EN14511 for European market, SAA, Water Mark, C-Tick for Australian market, ETL for North American market, etc



Our customer

Our product sell to more than 76 countries.And some customers will come to visit us every year.

Why choose us

1.Macon is professional manufacture of heat pump with experience for 11 years,mainly fours on heat pump development,production.

2.Macon EVI heat pump sell a lot to North China for Coal to electircity project.

3.We have engineer teams who can develop new product accroding to your requirement.

4.Macon heat pump pass CE,ETL,SAA,EN14511 certificate.

5.24 hours reply

6.OEM/ODM service are available
