Monobloc EVI air source heat pump for space heating cooling DHW for low temperature area

FOB Reference Price:Get Latest Price
$1,000.00 - $1,200.00 / Sets | 2 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Air Source Heat Pump
Installation:
Freestanding
Storage / Tankless:
Storage
Housing Material:
coat metal
Use:
Bathroom
Certification:
CE
Place of Origin:
Guangdong, China
Brand Name:
Macon
Model Number:
MACHRW035ZA/E01
running ambient temperature range:
-25-43C
Case:
Metal case
Source:
air source
Max.hot water outlet temperature:
63'c
Function:
house heating,cooling and DHW
Input power:
2.53kw
heating capacity:
8.3kw/h
Refrigerant:
R410A
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
carton+plywood pallet
Port
Shunde,Guangzhou,Shenzhen,China
Product Description

1: Advanced EVI Technology, compact design, easy to installation.
2: With perfect anti-freezing protection when the unit is running under the low temperature.
In -15'c ambient temperature, water outlet 41'c, COP up to 2.4.
3:Thermostatic heating element for anti-frost protection;
4:Using Low Temp Compressor,R410A Refrigerant,Green Environment, High-Efficiency,Providing Outstanding Performance and Reliability.
5: Fashionable design,compact structure, saving place,running lower the noise.
6: LED control panel,Timer function, automatic defrosting function, error messages showed warning.
7: Operating steadily under -25°C~45°C ambient temp , Maximum outlet water temperature can reach 60°C.
8: Meet Cold Regions Heating in Winter,Cooling in Summer, and whole Years Domestic Hot Water Demand.
9: With CE, EN14511-1 ,EMC,RoHS ,ISO9001 Air to Water Heat Pump Standard.
10: Germany, France, Britain, Finland, Italy, Netherlands, Spain, Poland, Ukraine, Turkey, Norway, Sweden, Switzerland, Estonia, Lithuania, Czech Republic, Greece, Denmark, Romania, Europe heat pumps

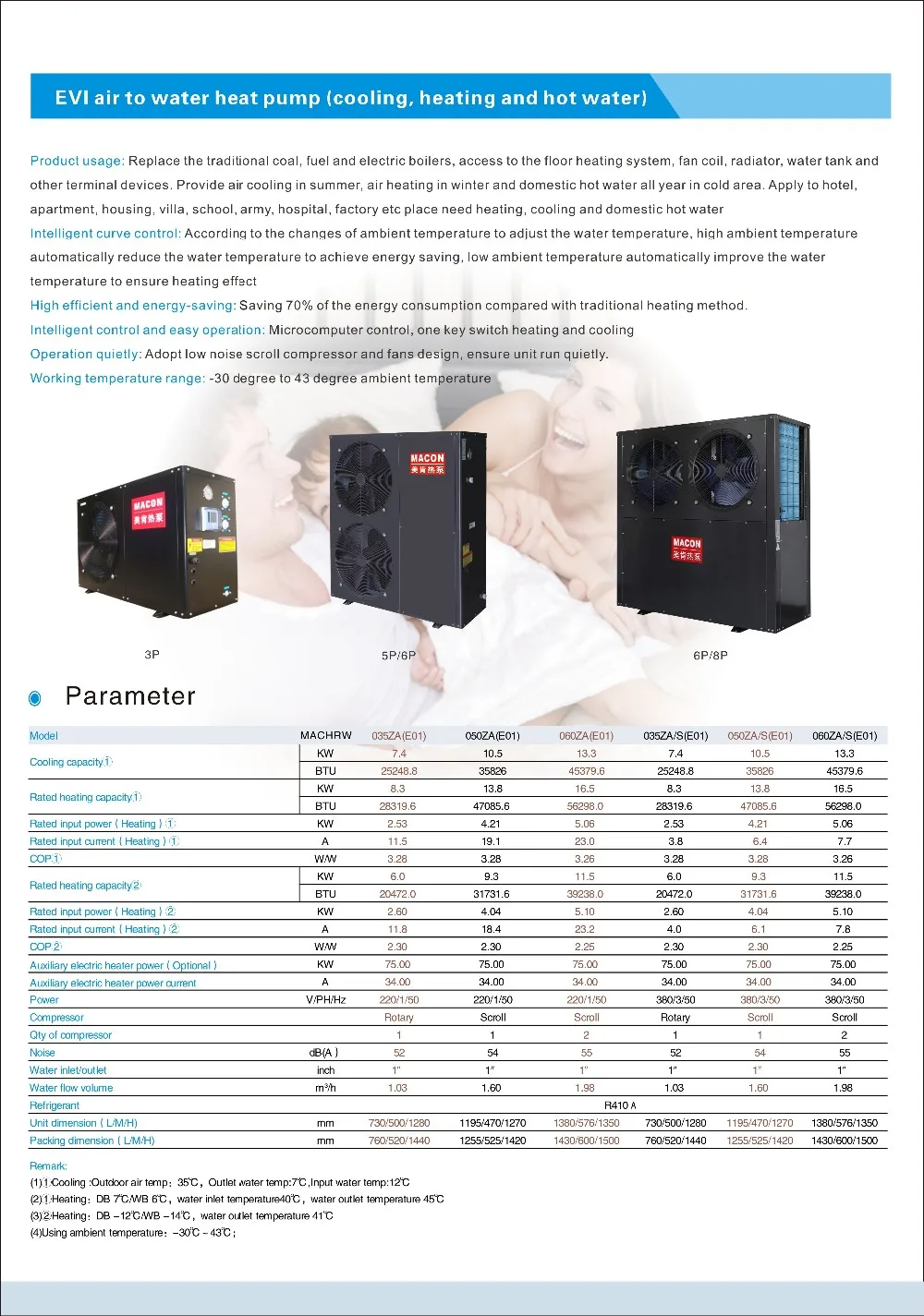

Macon EVI air source monobloc type monobloc type
Model
MACHRW
035ZA/E01
050ZA/E01
060ZA/E01
Heating:Outdoor air temp.7C/6C,outlet water temp:40C,input water temp.:45C
Heating Capacity
kW
8.3
13.8
16.5
COP
W/W
3.28
3.28
3.28
Input Power
kW
2.53
4.21
5.06
Working Ambient Temperature
C
-25-43
Power Supply
V/Ph/Hz
220/1/50
220/1/50 or 380/3/50
220/1/50 or 380/3/50
Refrigerant Type
R410A
House Size

Advised square meter for house for EVI Air to water heat pump(heating, cooling and domestic hot water)

Midel
Advised square meter for house
MALCRW
m3
035ZA
50-70
050ZA
90-130
060ZA
110-180
Model data sheet
Product advantage
Company Profile

Macon was established in 2006. Swimming pool heat pump, DC inverter air source heat pump, EVI air source heat pump, EVI DC inverter heat pump,on-off type heat pump, water source heat pump, pool dehumidifier etc are our main products. 200 stuffs by now, the factory cover the area of 10500 sqm meters. three seperated workshops. Own 75kw professional Laboratory , can set the temp. to -25C and set the humidity.Export goods to 76 countries .Nowadays most products are certified CE, ETL,RoHS,water mark,EN14511..
